JUPITER TMS: TRANSIENT MONITORING SYSTEM

JUPITER TMS: MISSION-PROVEN LIGHTNING & TRANSIENT MONITORING

HIGH-SPEED, ZERO DEAD-TIME, EVENT-DRIVEN DATA ACQUISITION

Lightning can infiltrate your power infrastructure and sensitive electronic systems in many ways. Direct lightning strikes to your facility or assets pose an obvious hazard, but nearby strikes can be equally damaging, particularly if lightning signals are strongly coupled into power and other utilities that enter your facilities. It pays to know when these lightning transients occur, and how damaging they are likely to be to your infrastructure.

The Jupiter Transient Monitoring System (TMS) is a high-speed, ultra-reliable data acquisition system. The system seamlessly interfaces with voltage, current, and electronic sensors. Jupiter TMS delivers real-time detection, analysis, and reporting for lightning and other transient signals, empowering you to quickly identify and diagnose potential issues in your critical power and electromechanical systems before they evolve into catastrophic failures.

JUPITER TMS
FEATURES

Zero Dead-Time Recording

Zero dead-time recording with 100% transient detection efficiency

Easily Deployable

Small, low-power, built-in UPS, self-configurable standalone operation

Immune to Lightning Effects

Tested, proven immunity to real lightning electromagnetic effects

Accurate Measurements

Accurate measurement of direct or coupled transients in a hostile lightning environment

Maximize Data Accuracy

High bandwidth, high-fidelity current, voltage, and electromagnetic field measurements

Instant Alerting

Near real-time alerts, reporting and characterization of recorded transient events

Customizable

- Higher channel counts
- Custom power/communication interfaces
- Site-specific indoor/outdoor mounting & installation configurations

SLS designed Jupiter TMS to reliably monitor, accurately measure, and quickly report lightning-related and other transient signals that may compromise the integrity of your sensitive assets. Investing in Jupiter TMS is making an informed decision to keep your operations seamlessly running. The detrimental impacts of lightning strikes can be significant, often causing latent damage that is not immediately apparent. By providing accurate and timely information, Jupiter TMS enables facility operators to identify, quantify, and comprehend these potential issues, ensuring your systems’ continued efficiency and effectiveness.

JUPITER TMS TECHNICAL SPECIFICATIONS

Technical specifications for our standard Jupiter TMS product are provided below

SLS’ standard Jupiter TMS is packaged in a custom aluminum rack-mount chassis (for a 19” instrumentation rack) and is also offered in either an aluminum or stainless steel NEMA 4X outdoor enclosure for harsh-environment applications.

Power 24 VDC
Communication Ethernet, Cell, or Fiber
Channels 4 Analog Channels
Input Balanced Differential or Single-Ended
Sampling Frequency 80 MS/s (up to 125 MS/s)
Analog Bandwidth > 40 MHz
Bit Depth 14-bit
Input Range +/- 100 mV to +/- 200 V
SNR > 69 dB
Timing GPS, IRIG-B DCLS, 1 PPS/ASCII
Trigger Logical, Ext. In/Out

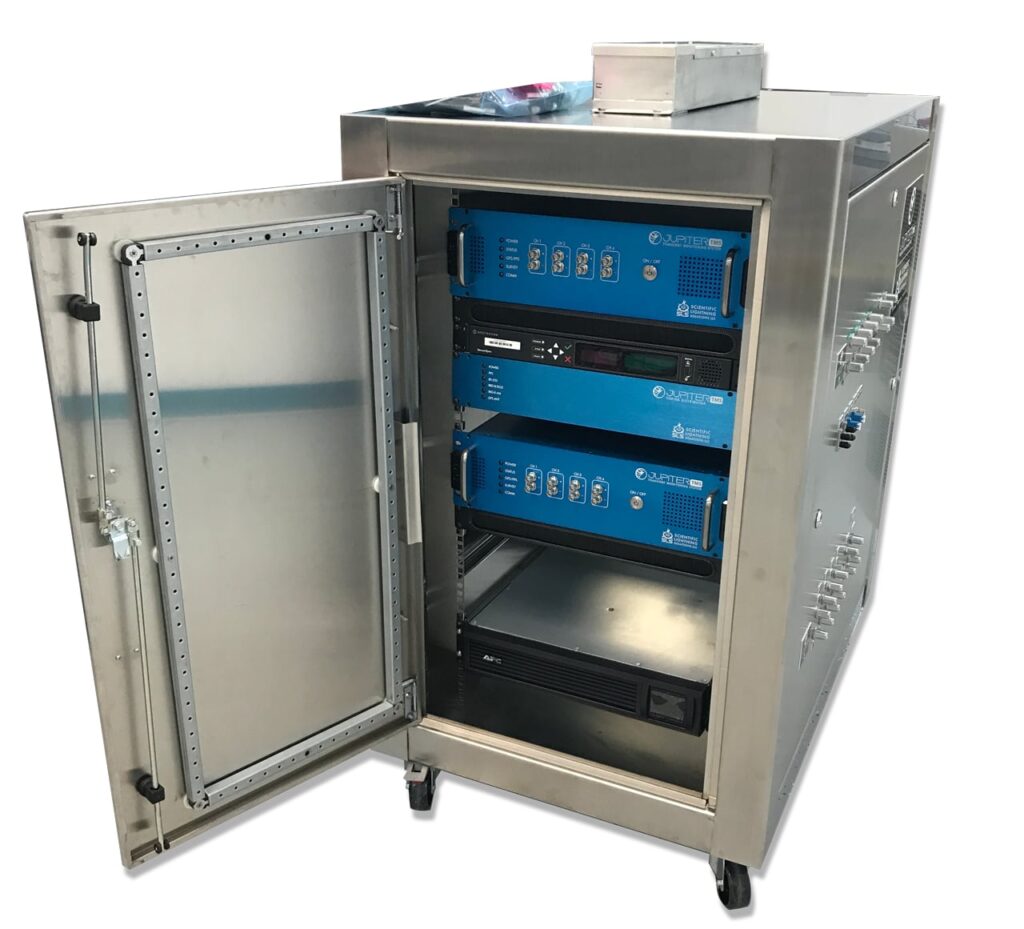

Jupiter TMS in steel rack

JUPITER TMS APPLICATIONS

Jupiter TMS provides non-intrusive transient monitoring for any critical power, communication, data, and control lines.

Oil & Gas

Monitor critical assets upstream and downstream with our Transient Monitoring Systems to guarantee seamless Oil & Gas operations.

Power Generation

Ensure consistent power output and safeguard vital infrastructure with our Transient Monitoring Systems tailored for Power Generation.

Space Launch Ports

Guard the frontier of space exploration: our Transient Monitoring Systems ensure the utmost safety and reliability for Space Launch ports.

Automated Warehouse & Distribution Facilities

Optimize safety and maintain seamless workflows in automated warehouses with our dedicated Transient Monitoring solutions.

Military & Defense

Strengthening mission readiness: our Transient Monitoring Systems offer unparalleled monitoring capabilities for critical military and defense operations.

High-End Research
& Testing

Upholding precision and reliability: our Transient Monitoring Systems meet the precision data requirements vital for high-end laboratories and test facilities.

JUPITER TMS RELATED PROJECTS

PARKER SOLAR PROBE LAUNCH

PARKER SOLAR PROBE LAUNCH

SLS designed and deployed a lightning monitoring system for the NASA Launch Services Program to provide precision lightning detection, location, and characterization for the Parker Solar Probe mission.

Read More »
ULA-GOES-R

NOAA/NASA GOES-R SATELLITE

SLS deployed a Jupiter TMS system to provide transient monitoring services for the sensitive GOES-R satellite while it was being prepared for launch atop an Atlas V rocket.

Read More »

jupiter tms RELATED PRODUCTS

Jupiter OLS

Jupiter OLS

Jupiter Optical Lightning Surveillance provides lightning-fast images and pinpoint strike location accuracy for 100% of strikes within the field of view.

B-DOT SENSORS

B Dot Sensor

Leverage our B-Dot sensors to detect the horizontal and vertical components of lightning-radiated magnetic fields.

D-DOT SENSORS

D Dot Sensor

Ruggedized electric field derivative sensor for measuring lightning-radiated electric field changes.
